Universal Snap Fit Clip System

Post by parkview » Sun Aug 14, 2016 3:32 pm

Have a laser cutter and want to be able to clip MDF/Acrylic sheets together? Stephen found this system:

https://tltl.stanford.edu/project/universal-snap-fit

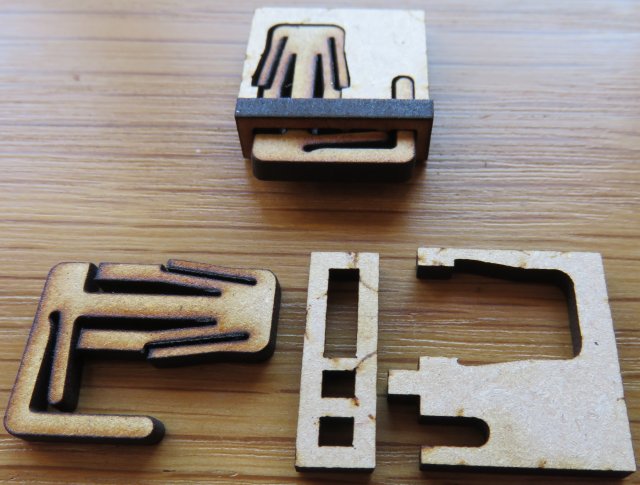

I cut out a sample on a 3mm MDF today:



It feels secure and was a tight fit - which is good. I don't know how often you could repeatably remove and re-clip it though. At least the clips would be easy to cut out again if one broke.

User avatar
seaton
Master Maker
Posts: 222
Joined: Tue Jun 24, 2014 11:41 am
Location: Bunbury, WA
Contact:

Re: Universal Snap Fit Clip System

Post by seaton » Thu Aug 18, 2016 12:16 pm

Nice one, I think they are designed as a single fit and not meant to be removed once clipped together, more for assembling something

User avatar
Jubbp
Master Maker
Posts: 209
Joined: Sun Jun 22, 2014 8:15 pm
Location: Bunbury WA
Contact:

Re: Universal Snap Fit Clip System

Post by Jubbp » Thu Aug 18, 2016 12:58 pm

Yes looks very permanent. Once you design it into a box it might be a little hard/impossible to remove.

parkview
Master Maker
Posts: 452
Joined: Tue Jun 24, 2014 8:25 pm
Location: Busselton
Contact:

Re: Universal Snap Fit Clip System

Post by parkview » Thu Aug 18, 2016 9:48 pm

Perhaps true, but at least with the 3mm MDF, they can be broken up and removed without damaging the two pieces that they are joining together. It's a nifty design to be sure though.
