Seek Thermal Camera - iPhone

Post by seaton » Mon Nov 09, 2015 10:33 am

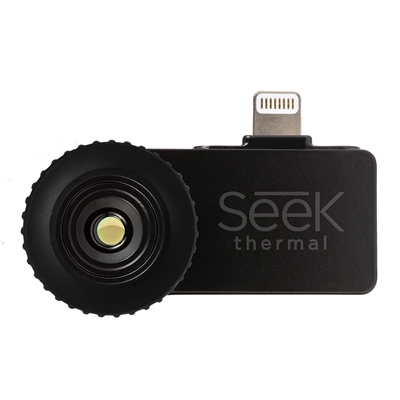

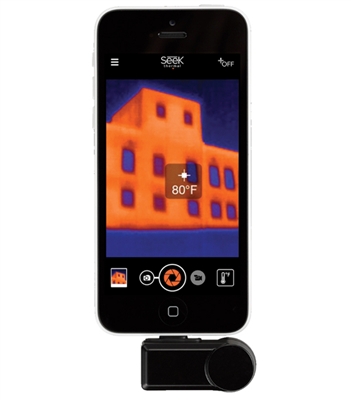

Well my birthday present to myself arrived today, a Seek Thermal Camera for the iPhone.

206 x 156 Thermal Sensor
36° Field of View
Long Wave Infrared 7.2 - 13 Microns
-40DegC +330DegC




They don't ship to Australia, so I used a drop shipping company who were great, http://www.bigapplebuddy.com

Here are some initial shots from my iPad of the office and server room.

The Thermal app also allows for dual screen, i.e. half normal camera, half thermal, also either picture or video but have yet to play with settings. It was only after I took these photos that I realised there is a manual focus on the lens, hence why these are a bit fuzzy.

Will bring along to meeting this weekend.

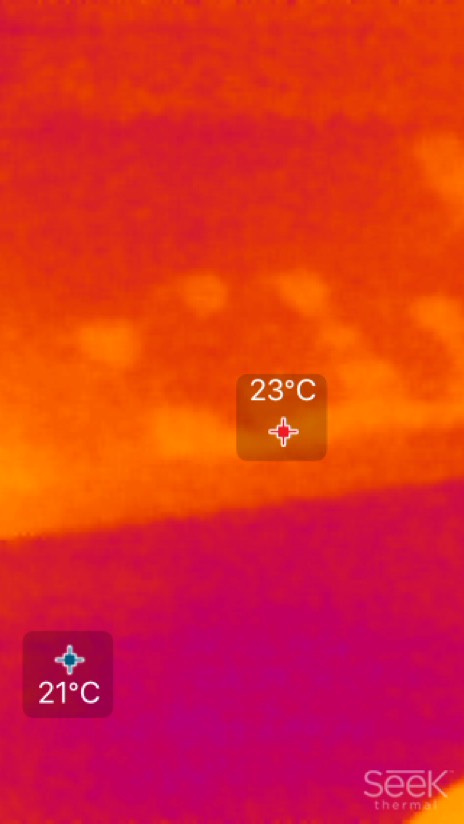

Finger prints on the desk a few minutes after touching


Server room Air conditioner


Server Room Rack

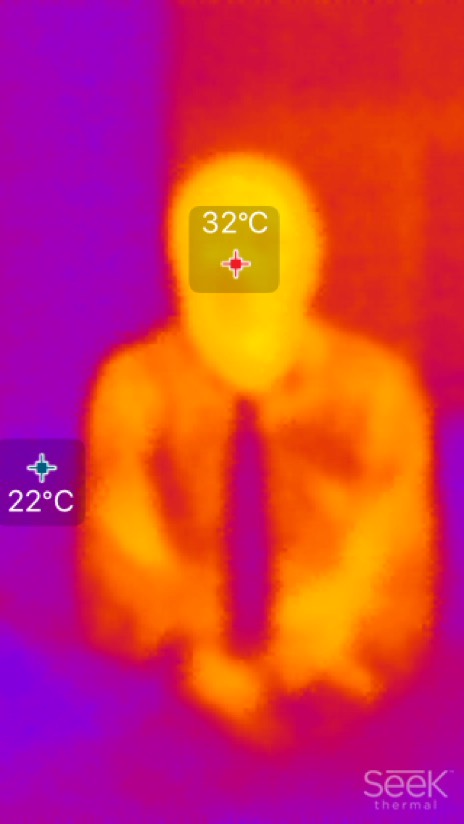

One of my test subjects
Last edited by seaton on Tue Nov 10, 2015 3:03 pm, edited 2 times in total.

User avatar
seaton
Master Maker
Posts: 217
Joined: Tue Jun 24, 2014 11:41 am
Location: Bunbury, WA
Contact:

Re: Seek Thermal Camera - iPhone

Post by seaton » Tue Nov 10, 2015 1:23 pm

Heres some more thermal goodness while playing around last night, for some reason they are wrong orientation when uploaded here...

If I get a chance tonight I want to check calibration ranges of temps, i.e. 0-100Deg and see how far off things are, as I noticed when checking the 3D Printer extruder it was off a bit, mind you it may be my printer as Ive added a different thermistor than the original and may have the wrong lookup table configured.

Most of these were done in the dark with no lights on at all

Thermal reflection from computer screen.

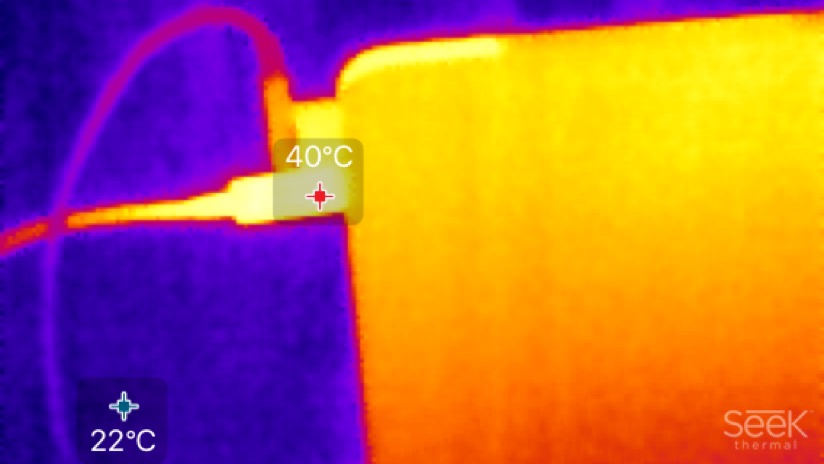

Macbook on stand plugged into thunderbolt monitor, interesting that the Thunderbolt plug has the highest heat signature.

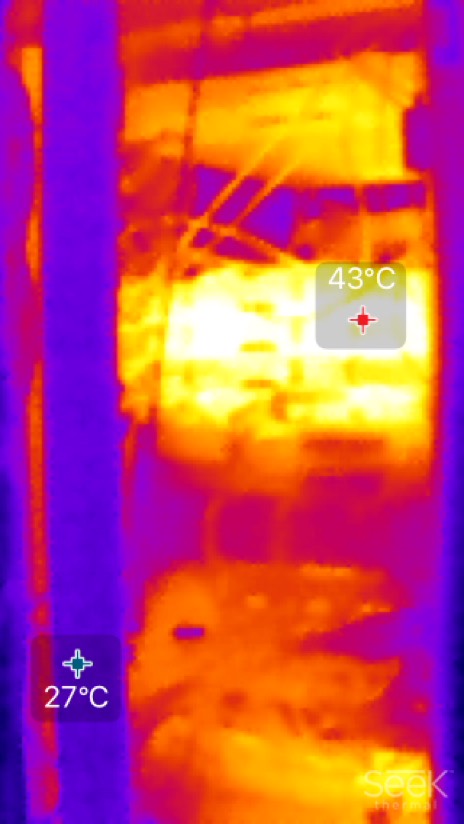

3D Printer build plate and Extruder heating up

I was watching it heat up and the build plate was very even across the whole surface, the differences you see here are the reflection in the corner of the extruder at 190DegC

From below. The insulation on the bottom of the build plate just doesn't seem to cut it for insulating the heat (It is 3mm cardboard mind you),however without it I don't get up to 100DegC

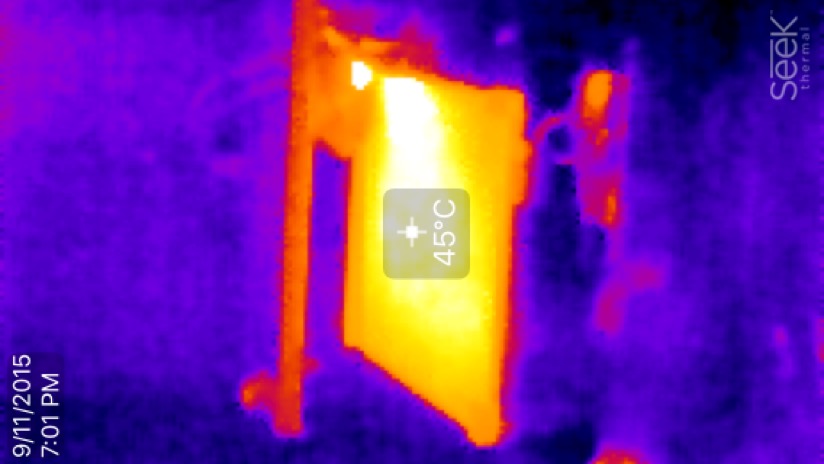

From Top, note reflection from extruder in corner



Foot print on the tile floor

parkview
Master Maker
Posts: 418
Joined: Tue Jun 24, 2014 8:25 pm
Location: Busselton
Contact:

Re: Seek Thermal Camera - iPhone

Post by parkview » Tue Nov 10, 2015 9:37 pm

LOL - well done. Looking fwd to checking it out! That is a very neat device and sooo useful.

parkview
Master Maker
Posts: 418
Joined: Tue Jun 24, 2014 8:25 pm
Location: Busselton
Contact:

Re: Seek Thermal Camera - iPhone

Post by parkview » Tue Nov 24, 2015 10:49 pm

What USA post shipper do you recommend?

User avatar
seaton
Master Maker
Posts: 217
Joined: Tue Jun 24, 2014 11:41 am
Location: Bunbury, WA
Contact:

Re: Seek Thermal Camera - iPhone

Post by seaton » Thu Nov 26, 2015 9:25 am

parkview wrote:What USA post shipper do you recommend?


Big Apple Buddy - http://www.bigapplebuddy.com

Couldn't recommend them enough they are fantastic. I dealt with Phillis (info@bigbuddy.com) and told her that I'd be recommending them to our maker group so if you use them let them know that I referred you.

Took just over a week to get here via UPS once they received it.

User avatar
seaton
Master Maker
Posts: 217
Joined: Tue Jun 24, 2014 11:41 am
Location: Bunbury, WA
Contact:

Re: Seek Thermal Camera - iPhone

Post by seaton » Mon Nov 30, 2015 8:44 pm

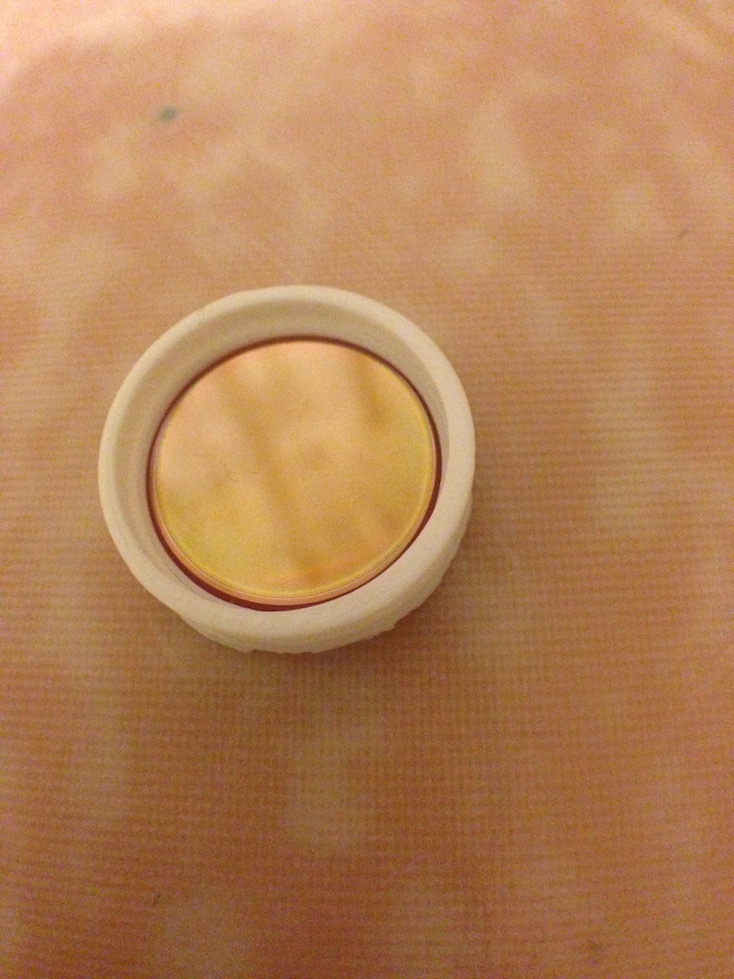

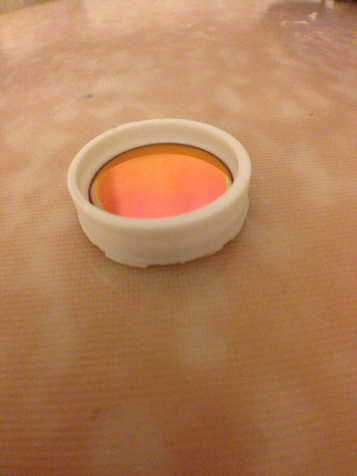

Today a couple of ZnSe lens I order from Ali arrived, these are used in CO2 lasers but pass the wavelengths for the camera and now allow me to do macro with the seek thermal.

I've ordered 2 lenses one has focal length of 100mm and other focal length of 50.8mm

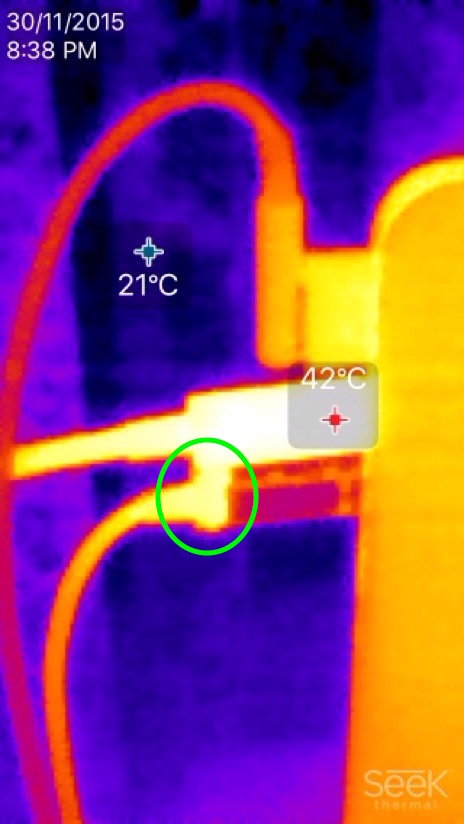

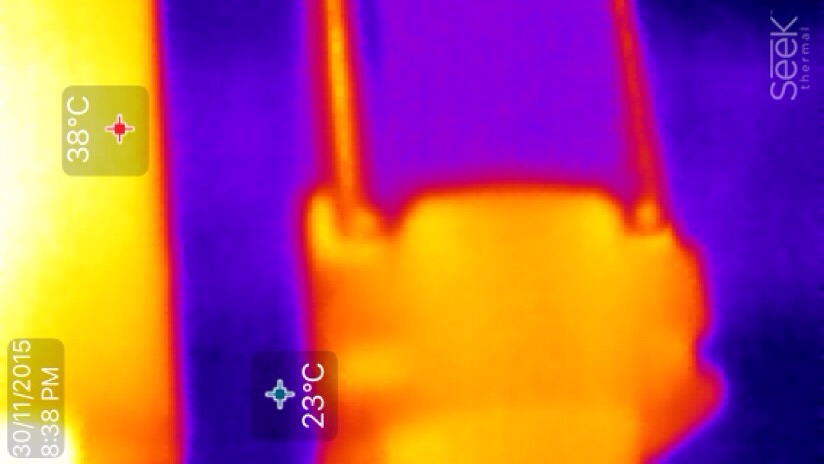

The posts below are of this area on my MacBook using both lenses

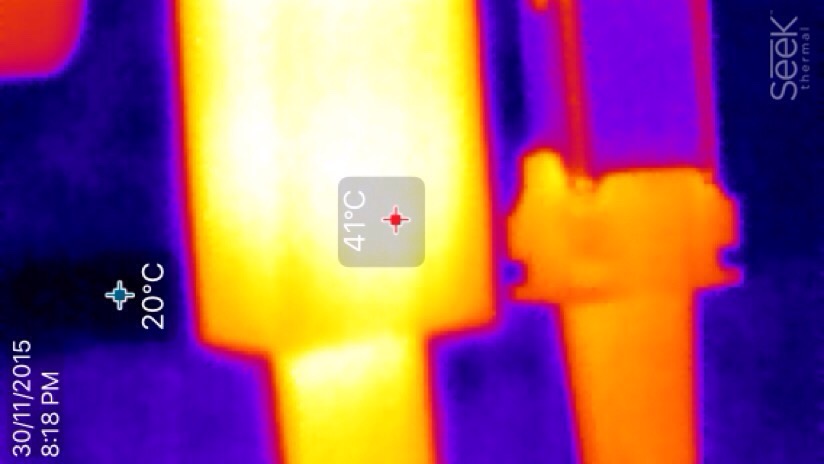

Focused 5mm away 1st Lens

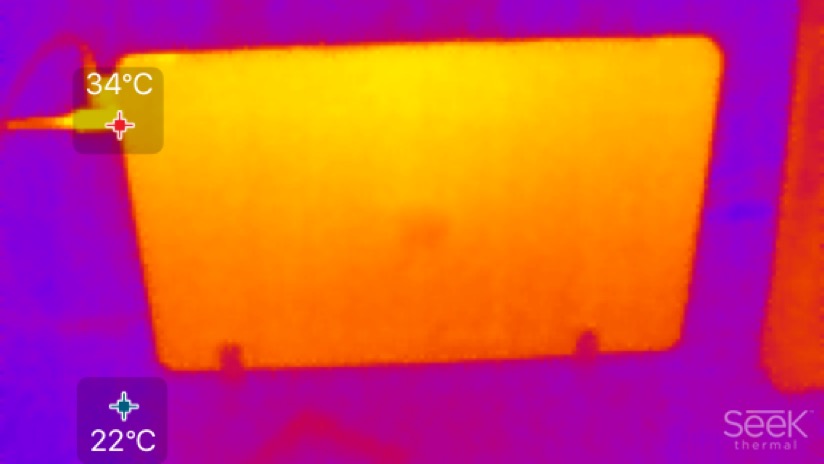

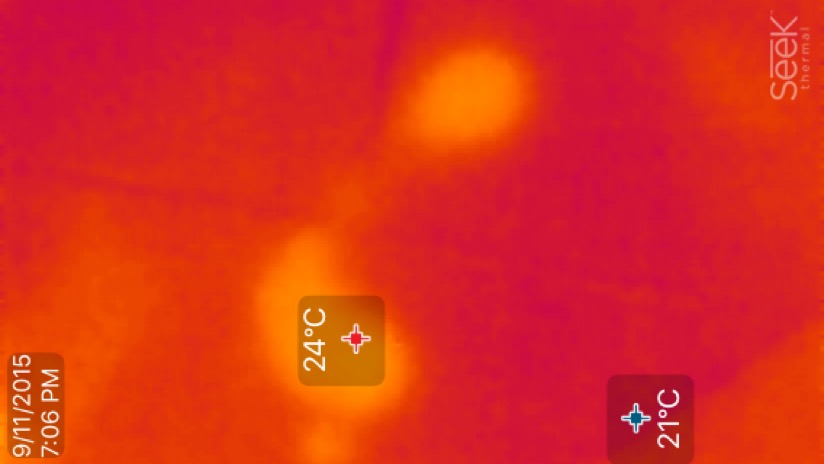

Focused 5cm away 2nd Lens
